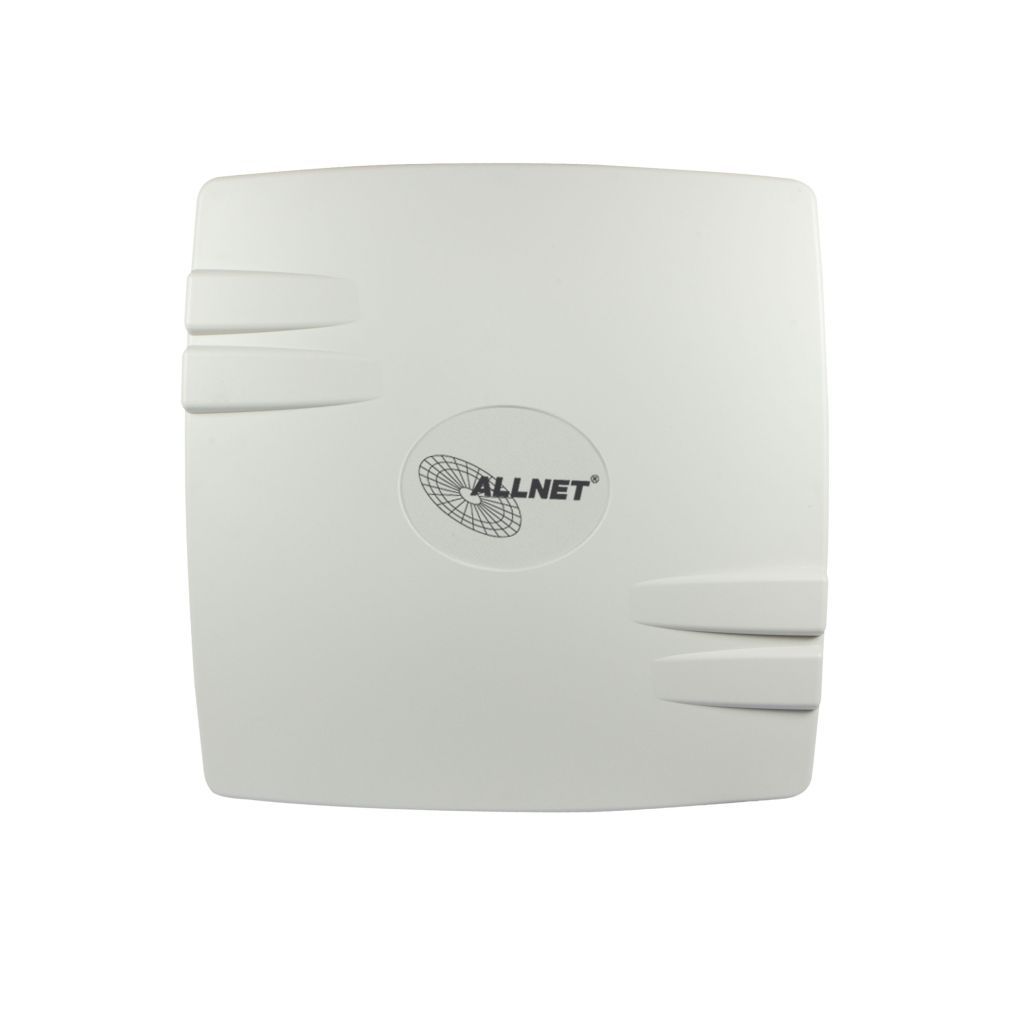

ALLNET Antenne 5,8 GHz 10dBi Flat Patch Outdoor 1T1R N-Type female
95,69 €
Sofort verfügbar, Lieferzeit: 4-6 Tage
Produktinformationen "ALLNET Antenne 5,8 GHz 10dBi Flat Patch Outdoor 1T1R N-Type female"
Hersteller Art.Nr.:
ANT-58-1T1R-PATCH-185
Electromagnetical Properties:
Frequency range: | 5150MHz ? 5850MHz |
VSWR: | Nominal 1.5:1, Maximal 2:1 |
Nominal Impedance: | 50 ohm |
Gain: | 10 dBi |
Polarization: | Vertical or Horizontal |
Azimuth Beamwidth (3dB): | Nominal 20° |
Elevation Beamwidth (3dB): | Nominal 20° |
Maximum Power: | 10 W |
Mechanical Properties:
Enclosure: | 185mm x 185mm x 45mm |
Connectors: | N female |
IP Protection: | IP 67 |
Temperature range: | from -40 °C to 80 °C |
Wind Speed: | 160Km/h |
Artikeleigenschaften
Datenblätter:
Datenblatt-1
ALL92278-ALL89999
