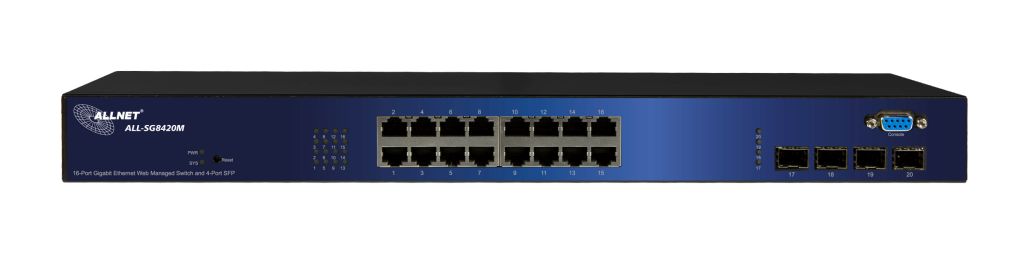

ALLNET Switch smart managed 16 Port Gigabit / 16x LAN / 4x SFP / Lüfterlos / 19" / "ALL-SG8420M"

Element

Spezifikation

Switch-Arbeitsweise:

Layer 2-Switch, smart, Store and Foreward, Auto-Negotiation

Switch-Typ:

standalone

Switching-Ports:

16x RJ45 10/100/1000BaseT(X)
4x MiniGBIC Slots

Uplink:

Auf allen Ports möglich (Auto MDI/MDI-X)

Kaskadierbar:

Uplink

Full Duplex Mode:

Ja

Datendurchsatz:

Leitungsgeschwindigkeit

Buffer Memory:

524,8K Bytes

Adressen-Management:

Selbstlernend

Adressentabelle MAC:

8000

Filtering/Forwarding:

Leitungsgeschwindigkeit

LED-Anzeigen:

Power
Link
Activity

Stromversorgung:

100 - 240V AC, internes Netzteil

Stromverbrauch:

15 Watt maximal

Unterstützte Standards:

• IEEE802.3 10BaseT
• IEEE802.3u 100BaseTX
• IEEE802.ab 1000BaseT
• IEEE802.3ad Link Aggregation
• IEEE802.1ab Link Discovery Protocol (LLDP)
• IEEE802.3x full-duplex operation and flow control
• IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p class of service, priority protocols
• IEEE802.1Q VLAN Tagged Based
• IEEE802.1d Spanning Tree (STP)
• IEEE802.1w Spanning Tree (RSTP)

• Flow Control (Full-Duplex & Half-Duplex)
• Spanning Tree (IEEE802.1d STP & IEEE802.1w RSTP, Auto Edge Port, Self Loop Detection)
• VLAN (64 Statis VLAN, Port-based, IEEE802.1q Tagged-based)
• Voice VLAN (OUI Mode)
• Link Aggregation (IEEE802.3ad LACP, Static Trunk, 8x max Gruppen, 8 Ports/Gruppen, Traffic Load Balancing)
• IGMP Snooping (256 Multicast Gruppen, IGMP v1/v2/v3
• IEEE802.1ab Link Layer Discovery Protokoll (LLDP)

• 8 Priority Queue
• Rate Limit (Port Based Ingress/Egress)
• Queue Scheduling (WRR, WFQ, Strict Priority, Hybrid)
• Class of Service (Port-based, Flow-based, 802.1p, IP Tos, IP DSCP)

• Storm Control (Broadcast, Unknown Multicast, Unknown Unicast)
• HTTPS und SSL 2.0
• Account Manager (Multiple Account, Multi-Level Security)
• Management VLAN,
• Port-Isolation
• DoS Prevention

• IPv6 Application (HTTP/HTTPS, TELNET, SNMP, TFTP, PING, PHCPv6)
• IPv6 Host (Static Adress Length, Default Gateway, Neighbor Discovery (ND), Duplicate Adress Detection, ICMPv6)

• Web-GUI (HTTP,HTTPS)
• Command Line Interface CLI ( Console, RFC854)
• SNMP (v1/v2)
• File Managment (Firmware Upgrade, Configuration Download
• DHCP Client
• DNS Client
• Mirroring (Port-based (many to one)
• Syslog (RFC3164, LocalRAM, Local Flash, Remote Server)
• Time Setting (Local, SNTP)
• Cable Diagnostics (Cable Test)
• Port Utiliation
• Reset Button
• EEE (802.3az)

Gehäuse:

19" Metallgehäuse, Montagewinkel beiliegend,

Maße:

Breite/Tiefe/Höhe: 441x131x44mm

Umgebung:

Temperatur Betrieb: 0 ~ 55 °C
Luftfeuchtigkeit Betrieb: 10% ~ 90%
Temperatur Aufbewahrung: -20 ~ 90 °C
Luftfeuchtigkeit Aufbewahrung: 5% ~ 90%

Kennzeichnung:

EMC/FCC, CE Class B; Safety/LVD EN60950-1
