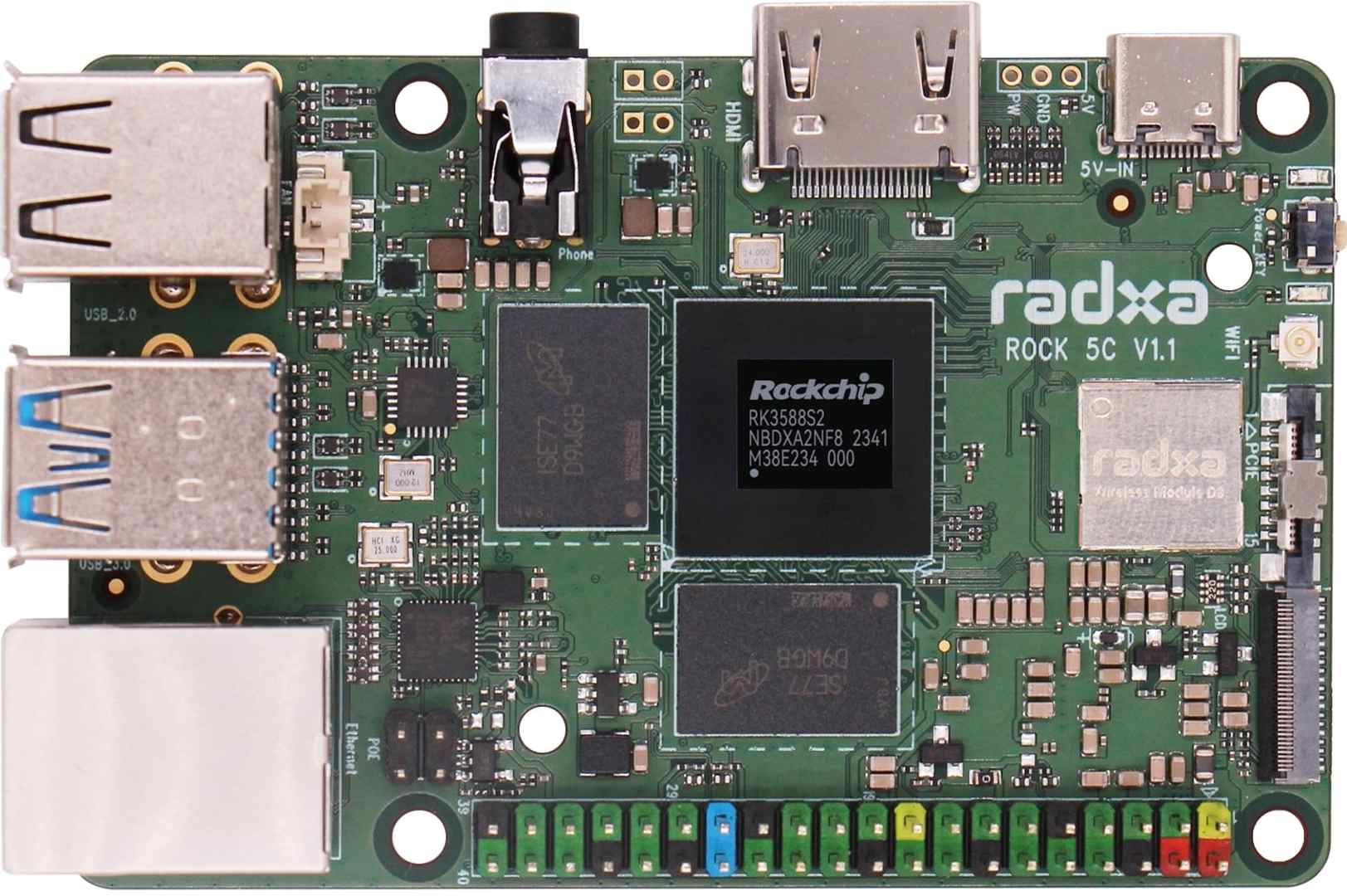

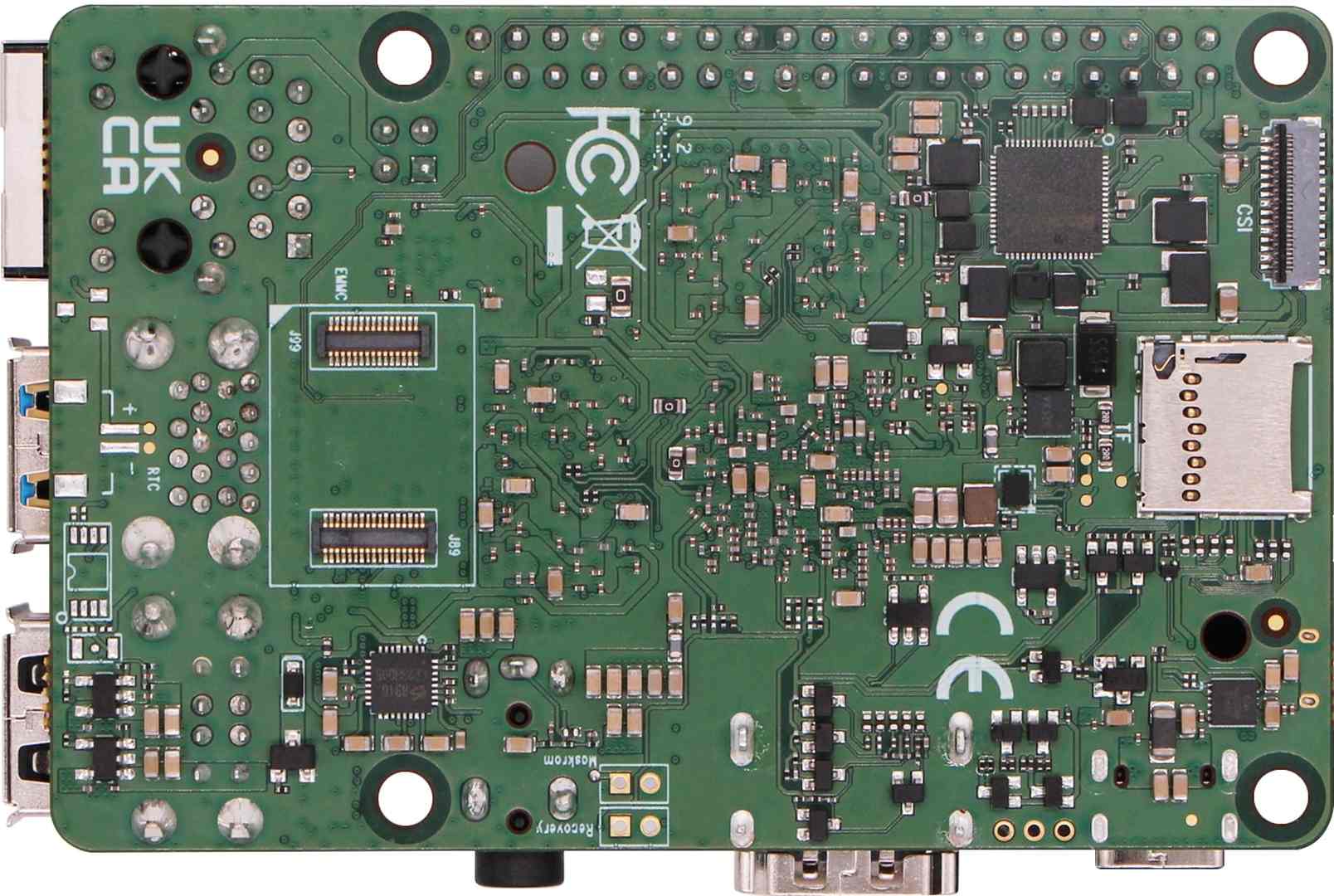

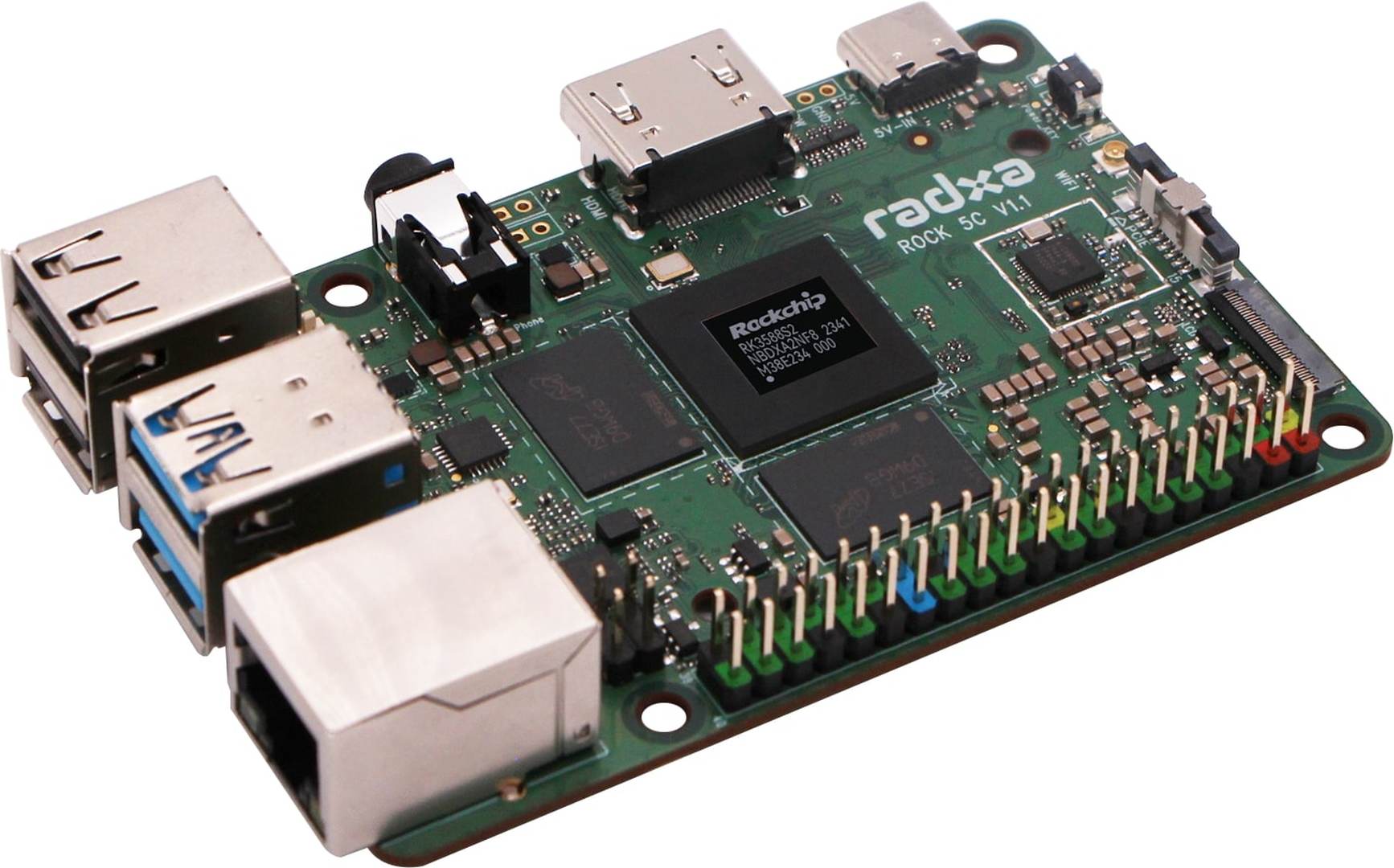

Radxa Rock 5C RK3588S 32GB LPDDR4 RS131-D32R26

Hersteller Art.Nr.:
RS131-D32R26

Rockchip RK3588S2 64bit octa core ARM based SBC´s

RADXAs neueste SBC-Generation basierend auf dem Rockchip RK3588S2 in einem kompakten Formfaktor, der mit einer breiten Palette an klassenführenden Funktionen, Eigenschaften und Erweiterungsoptionen ausgestattet ist. Verschiedene LPDDR4x RAM Speicheroptionen (2, 4, 8, 16 und 32GB).

Rock5 Model C product details

RK3588S264bit octa core processor

Quad Cortex®-A76 @ 2.2~2.4GHz and a quad Cortex®-A55 @ 1.8GHz based on Arm®
DynamIQ™ confguration

GPU

Arm Mali™ G610MC4 GPU supporting:

– H.265 and VP9 decoder by 8K@60fps

– H.264 decoder by 8K@30fps

– AV1 decoder by 4K@60fps

– H.264 and H.265 encoder by 8K@30fps

NPU

NPU supporting INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration computing power is up to 6TOPs

Memory LPDDR4

64bits LPDDR4x RAM with 2, 4, 8, 16 or 32GB

Storage

· 1x eMMC Connector
· 1x Micro SD Card Slot
· no SPI Flash

Display HDMI and MIPI DSI

Dual display support via HDMI, and MIPI DSI

H.265/VP9 decoder up to 8K@60fps

H.264 multivideo decoder up to 8K@30fps

Interfaces

· 1x USB Type-C™ port for 5V fixed power
· 1x Micro SD Card
· 1x HDMI 2.1 port (up to 8K)
· 1x MIPI DSI (up to 2K)
· 2x USB2.0 Type A HOST ports, 1x USB3 Type A HOST port, 1x USB3.0 Type A OTG/HOST port
· 1x Gigabit Ethernet port (supports PoE with add-on PoE HAT)
· 1x M.2 E Key with PCIe 2.1 one-lane, SATA, USB 2.0 support
· 1x eMMC module connector for eMMC 5.1 support
· 1x Camera port (1x four-lane MIPI CSI or 2x two-lane MIPI CSI)
· 1x PCIe FPC connector with PCIe 2.1 1-lane

· Miscellaneous

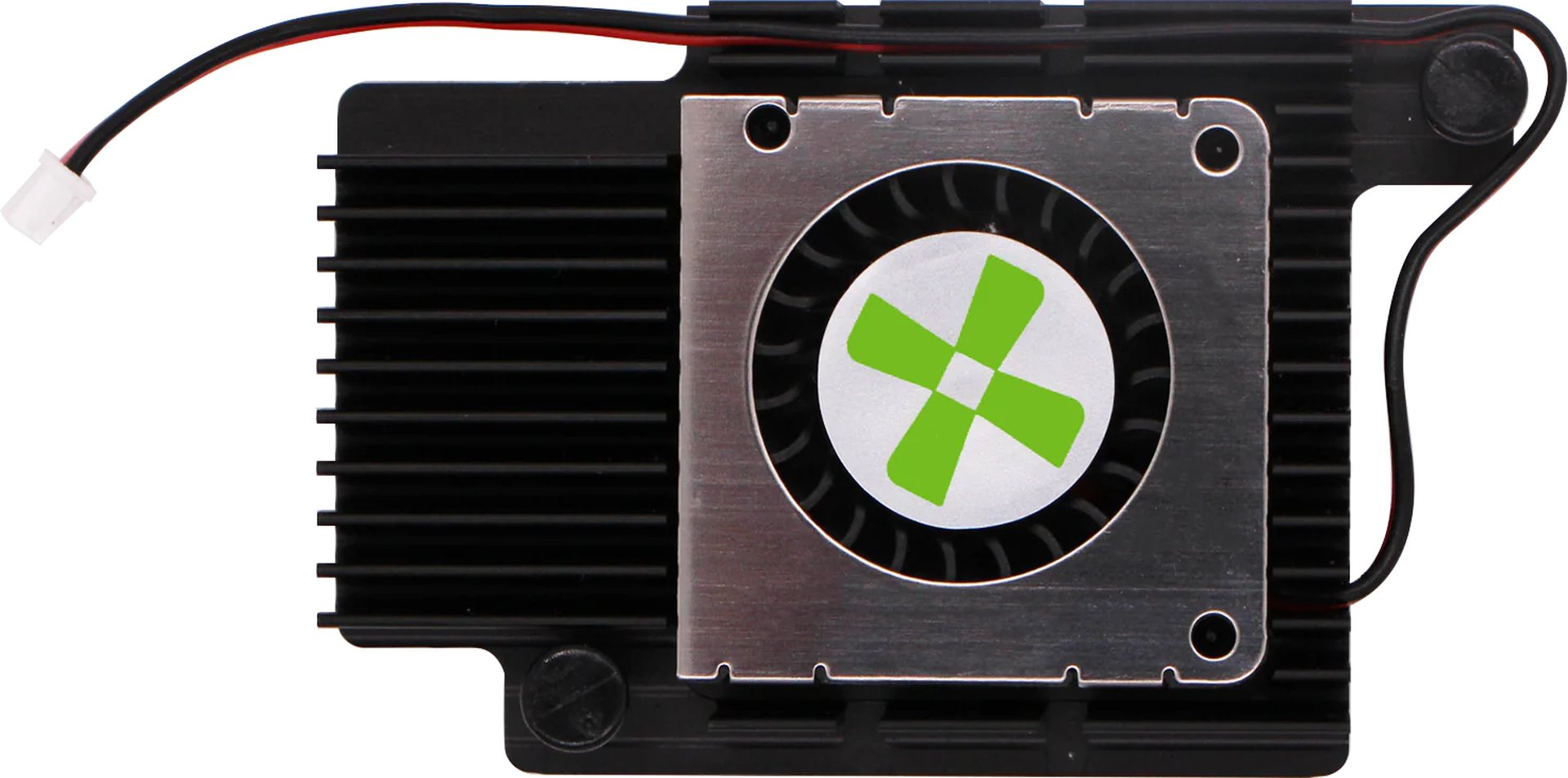

– 1x 2 pin fan connector
– 1x Power button
– 1x Power LED, 1x User LED

·40 pin 0.1” (2.54mm) header supporting a wide range of interface options:

– Up to 5 x UART (2x with ?ow control)
– Up to 3 x SPI bus
– Up to 6 x I2C bus
– Up to 1 x PCM/I2S
– Up to 2 x SPDIF
– Up to 7 x PWM
– Up to 1 x CAN
– Up to 1 x ADC
– Up to 27 x GPIO
– 2 x 5V DC power in/out
– 2 x 3.3V power out


Network

LAN

1GbE LAN with PoE support

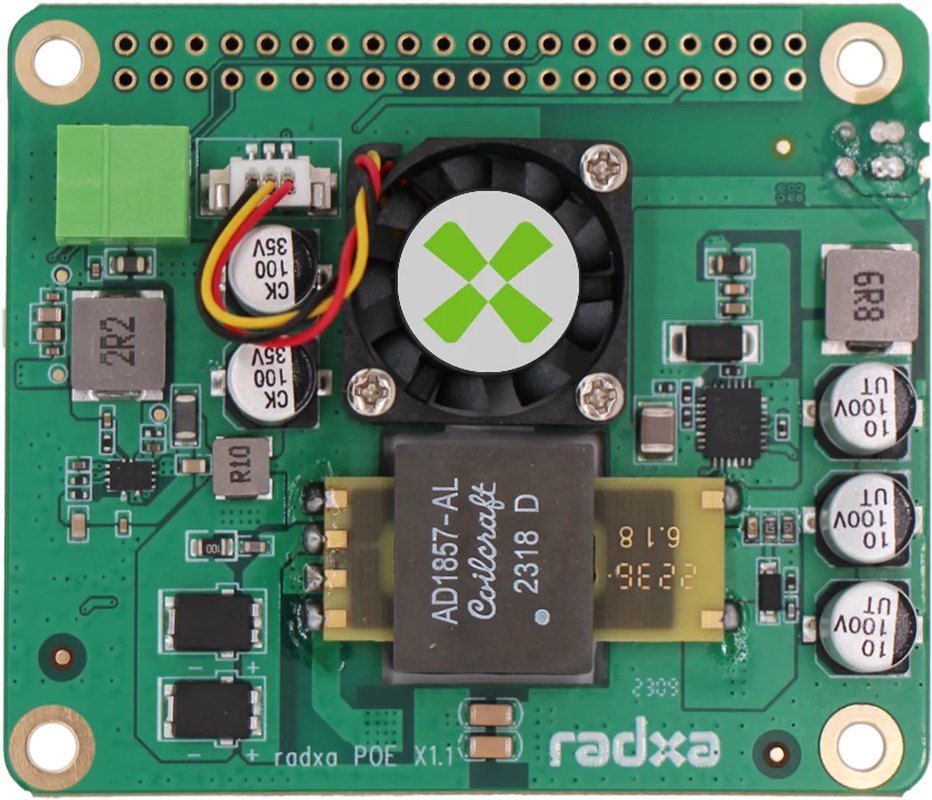

*additional HAT is required for powering via PoE

WiFi

WiFi 6 and BT 5.4 with External Antenna Connector

Software

· ArmV8 Instruction Set
· Debian/Ubuntu Linux support
· Android 12 support
· Hardware access/control library for Linux/Android

Others

Power adapter with fixed voltage of 5V on the USB Type-C port requested

ROCK 5C has been designed to operate between 0°C to 50°C

Size 86mm x 56mm

Essentials You Need

• ROCK5 Model C

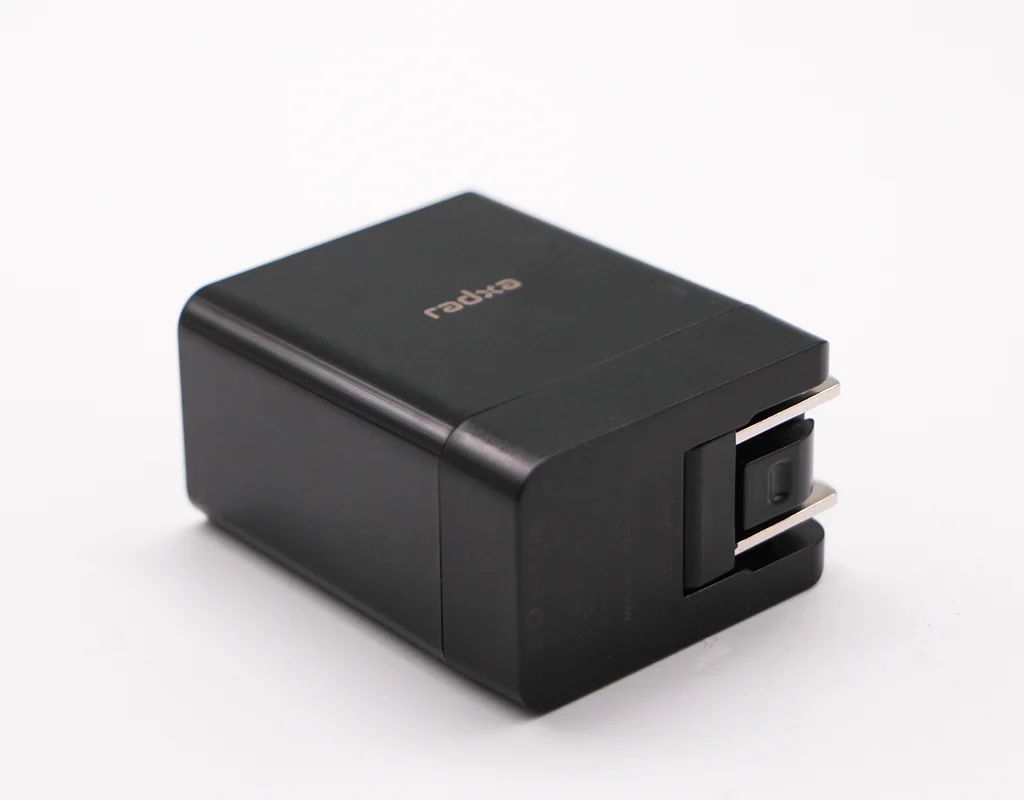

• Fixed voltage (5V) power adapter with USB- C port equal or larger than 10W (>=25W with PCIe 2.1 load and USB3 use)
• Keyboard & Mouse
• Monitor with HDMI input
